Chevrolet Small Block Dry Sump Oil Pan







1012N

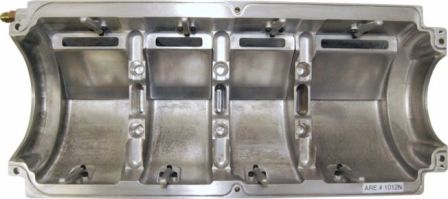

1012N underside

Part No. 1012N

Chevy Small Block SB2 "NASCAR Style"
Developed by Dale Earnhardt Racing

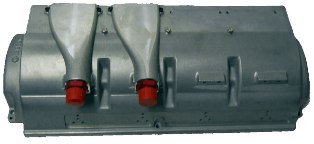

1012R2

1012R

Part No. 1012R

Chevy Small Block SB2 "Ultimate"
ARE Road Race Design



All ARE Dry Sump Oil Pans are made from Areospace Alloy Cast Aluminum construction for its inherent strength, vibration damping & sealing abilities, they are then CNC Machined for ultimate accuracy.

Included in the interior of the pan is a custom engineered windage tray to insure ultimate scavenging of the oil through the pickup locations.

Additionally, we recommend only using ARE designed fittings which include built in integral screen filters. This Screen Fitting design eliminates the need for an in-line filter.

red arrow curve hiChevy Small Block #1012N Technical Drawing



"Kick Out" Indy Style
"Designed For The Indy Small Block of the Early '80's"

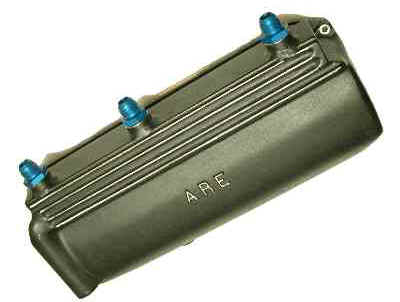

 1012b1



1012c1



Part No. 1012
Also Available With Deep Rear Sump - 2 Outlets - Part No. 1013Part No. 1012







ARE #1012N dry sump pans installed on Earnhardt's
NASCAR engines (Small Block Chevy)



CSB1

CSB2 tn

CSB3

For the ULTIMATE DRY SUMP SBC, SB-2







Bellotti1 tn

Bellotti Racing Corvette
